Use cases: stats and residuals

This vignette demonstrates more advanced usage of the package. For a getting-started guide and overview of this package’s basic use case, see vignette("ggerror").

Setup

We use airquality — Daily air quality measurements in New York, May to September 1973.

This dataset has 153 rows with 6 columns: 4 continuous measurements, Month and Day.

data("airquality"); airq <- airquality

# It wouldn't be an R workflow without minimal data cleaning...
day_in_month <- function(day_in_month, month, year) {
  days_abbr <- format(as.Date(sprintf("%d-%02d-%02d", year, month, day_in_month)), "%a")
  factor(days_abbr, levels = c("Mon","Tue","Wed","Thu","Fri","Sat","Sun"), ordered = TRUE)
}
airq$Day <- day_in_month(airq$Day, airq$Month, 1973)
airq$Month <- factor(airq$Month, labels = month.abb[5:9])

More on airquality (click to expand, or type ?airquality)

airquality contains daily New York air-quality measurements from May to September 1973. The main continuous variables are Ozone, Solar.R, Wind, and Temp; Month and Day identify when each measurement was taken.

Let’s use it to show two use cases: plotting a sign-aware residual plot and summarizing raw data with stat_error().

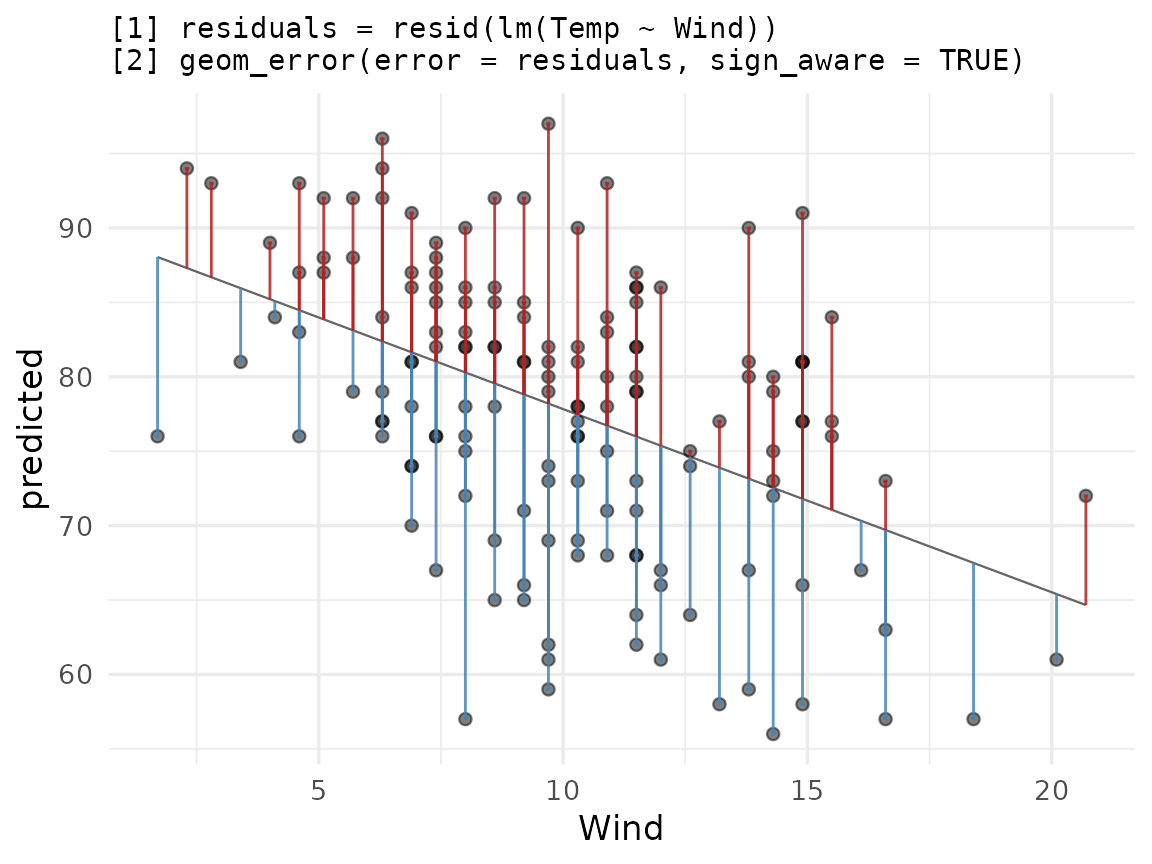

Residual plot with sign_aware

sign_aware = TRUE interprets the sign of error as direction: positive values extend in the positive axis direction, negative in the negative.

Let’s fit a linear model and see how Temp can be explained by Wind.

model   <- lm(Temp ~ Wind, data = airq)
airq_fit <- cbind(airquality[,c('Temp','Wind')],
                  predicted = predict(model),
                  residuals = resid(model)
                 )

Let us complement the usual ggplot2 workflow for plotting residuals versus true values:

ggplot(airq_fit, aes(x = Wind, y = predicted)) +
  geom_line(linewidth = 0.4, colour = "grey40") +
  geom_point(aes(y = Temp), alpha = 0.5) +
  geom_error(aes(error = residuals),
             sign_aware  = TRUE,
             orientation = "x",
             color_pos  = "firebrick",
             color_neg  = "steelblue",
             linewidth   = 0.5,
             alpha       = 0.85) +
  labs(title = paste(
    "[1] residuals = resid(lm(Temp ~ Wind))",
    "[2] geom_error(error = residuals, sign_aware = TRUE)",
    sep = "\n"
  ))

• Flexible styling: ggerror provides us with per-direction styling (color) as well as global styles (alpha, linewidth, etc.). How to interpret the plot is up to you. You may want to color the direction differently, to show the direction the bar extends, rather than the sign of the error. Experiment with this by tweaking either the actual color value, or the neg/pos suffix.

• orientation = "x" Because both axes are numeric, ggerror can’t infer the direction the bar should extend, so we pass orientation = "x" (which extends the bar along the y axis) explicitly. When one axis is discrete, orientation is inferred.

• NA values vs 0: An NA value draws nothing, and triggers a row-indexed warning. As in ggplot2’s ecosystem, we would usually exclude invalid (missing or infinite) values before plotting. 0 is treated as any other value, and “draws” a bar of length zero (basically, nothing). Using NA comes in handy when we want to explicitly draw one-sided bars (see vignette("ggerror")).

Summarizing raw data with stat_error()

stat_error() follows ggplot2’s fun.data logic: pass a summary function and it computes y, ymin, ymax per group. Regardless of the orientation of your plot, the summary function must return a data frame with these exact column names.

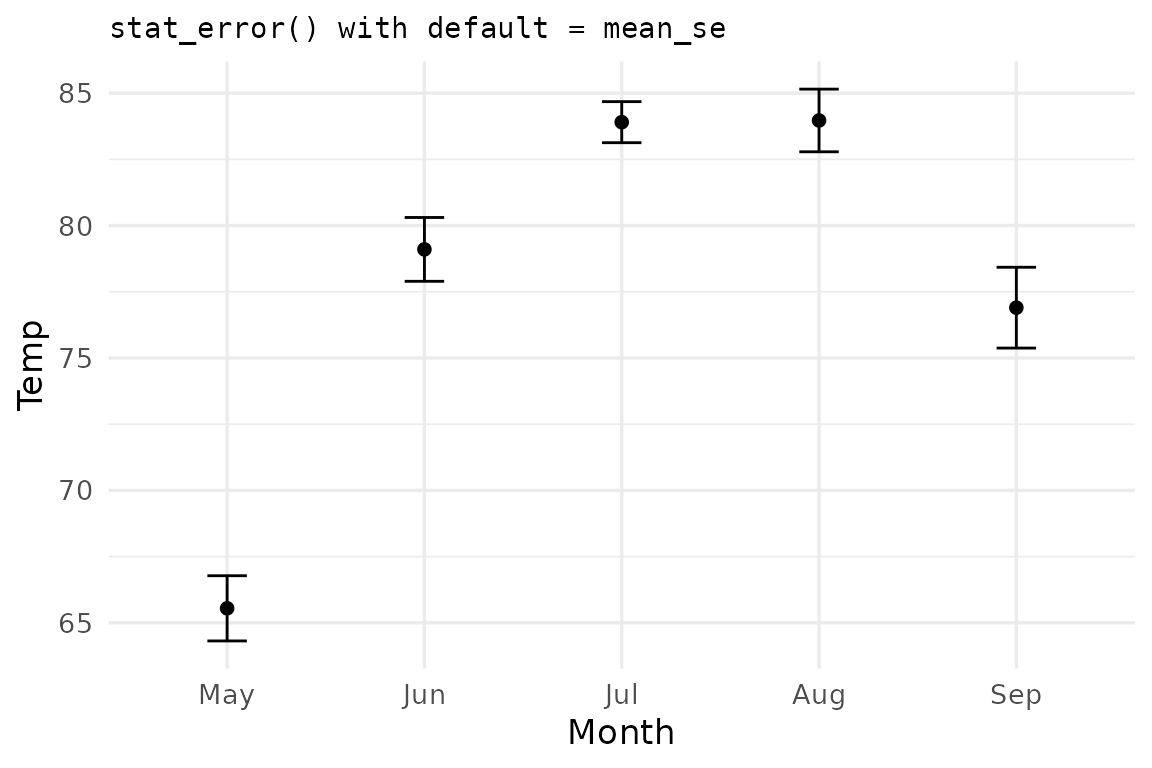

The default summary function is mean_se (mean ± one standard error):

ggplot(airq, aes(Month, Temp)) +
  stat_error(width = 0.2) +
  stat_summary(geom='point') +
  labs(title = "stat_error() with default = mean_se")

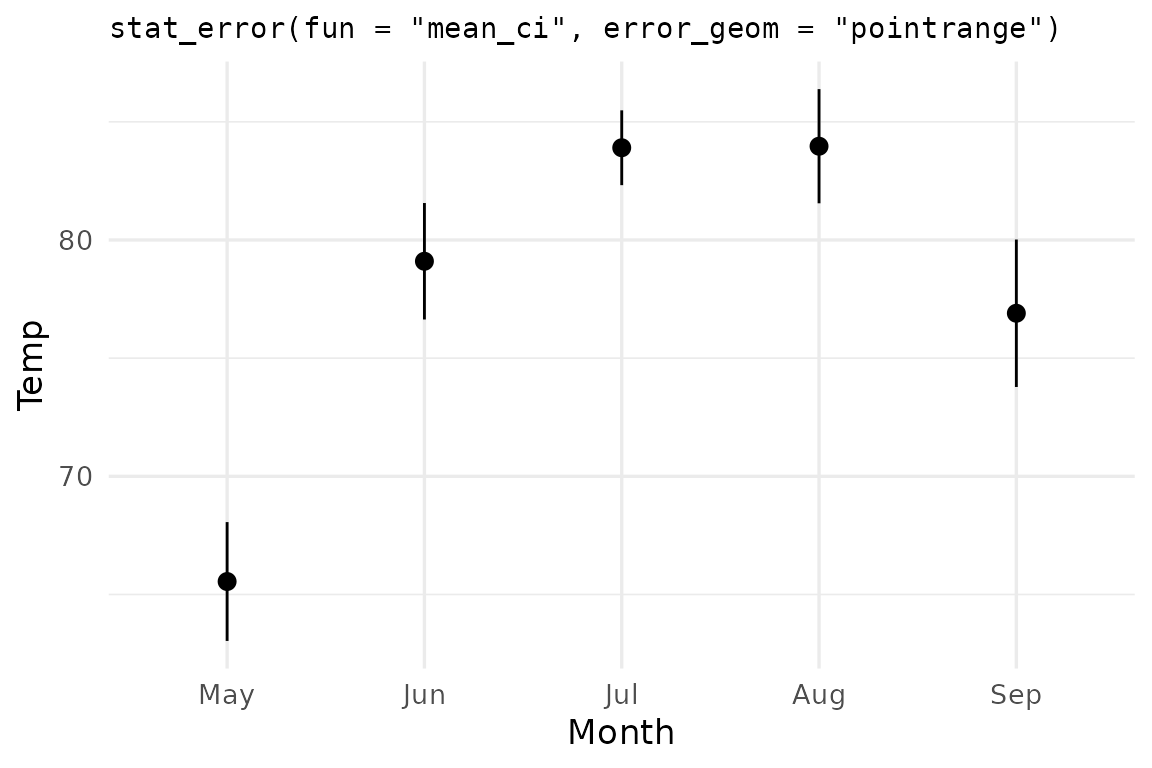

ggerror ships two summary functions. You just saw the default, mean_se. The second is mean_ci which computes the mean and 95% confidence interval error bars.

ggplot(airq, aes(Month, Temp)) +
  stat_error(fun = "mean_ci", error_geom = "pointrange") +
  labs(title = 'stat_error(fun = "mean_ci", error_geom = "pointrange")')

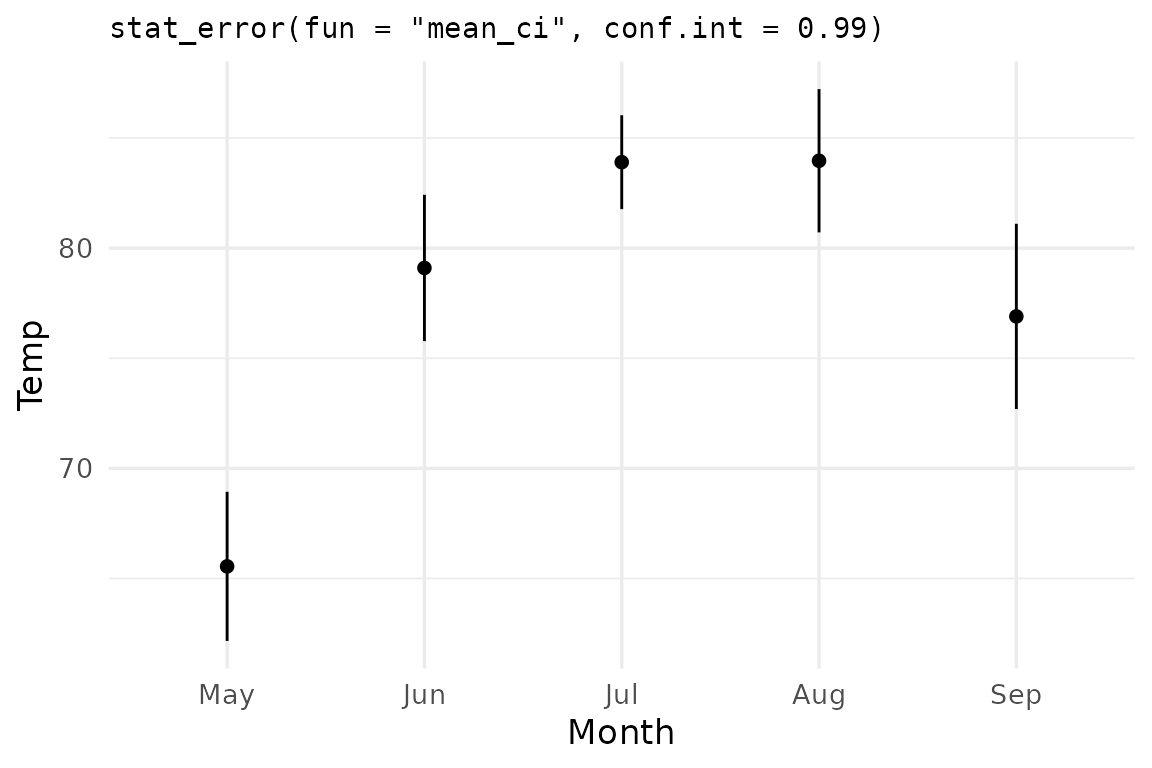

The conf.int argument controls the CI width — 0.95 by default, but any valid probability in (0, 1) works:

ggplot(airq, aes(Month, Temp)) +
  stat_error(fun = "mean_ci", conf.int = 0.99,
             error_geom = "linerange") +
  stat_summary(geom="point") +
  labs(title = 'stat_error(fun = "mean_ci", conf.int = 0.99)')

Note: I combine multiple summary geoms. ggerror is compatible with ggplot2 (core) and its ecosystem.

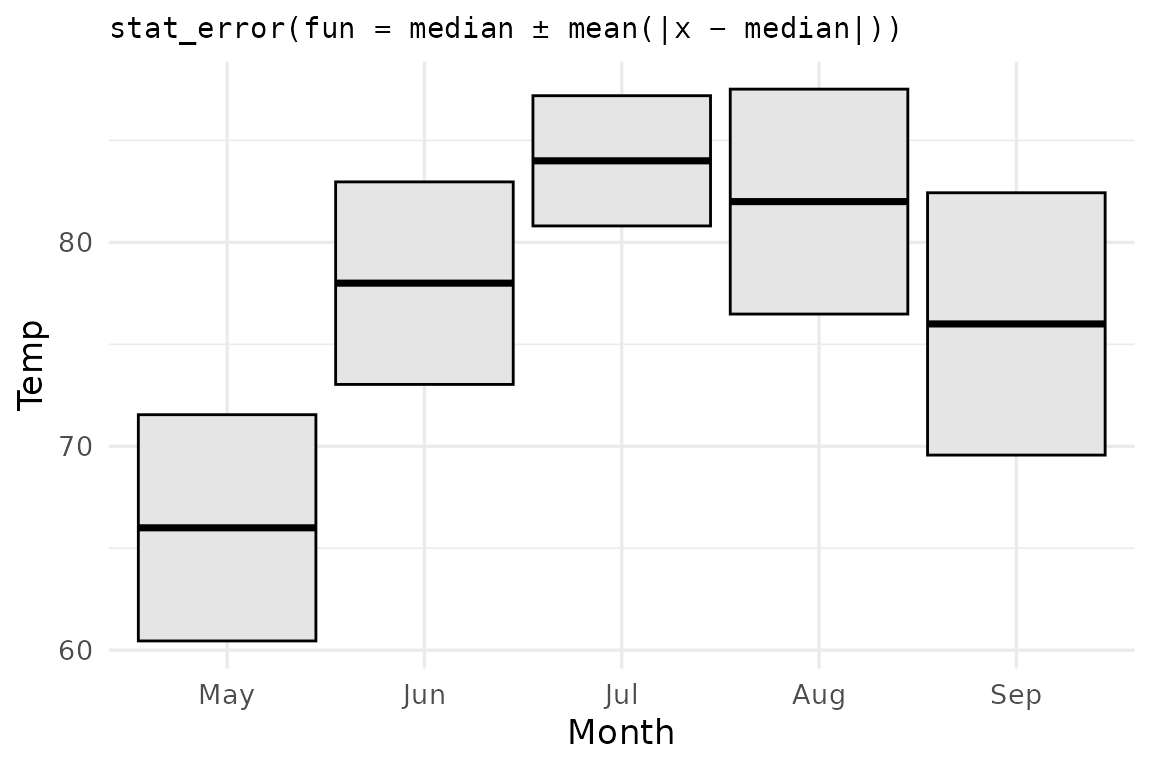

Custom summary function: median ± mean absolute deviation

You shall not be limited by my imagination. Create your own custom summary functions, as long as they obey the rules I mentioned earlier (returned object must be a data frame with three columns: y, ymin, ymax and one numeric row). R’s mad() computes the median absolute deviation from the median. Let us use the mean absolute deviation (from the median), and call it mae (e for error, to avoid naming conflicts).

median as the center, mean absolute deviation from the median as the spread:

$$\mathrm{mae}(x) = \frac{1}{n}\sum_{i=1}^{n}\left|x_i - \mathrm{md}(x)\right|$$

mae_summary <- function(my_vec, scale_by = 1) {
  md  <- median(my_vec)
  mae <- mean(abs(my_vec - md)) * scale_by
  data.frame(y = md, ymin = md - mae, ymax = md + mae)
}

ggplot(airq, aes(Month, Temp)) +
  stat_error(fun = mae_summary, error_geom = "crossbar",
             fill = "grey90") +
  labs(title = "stat_error(fun = median ± mean(|x − median|))")

Custom functions can take extra parameters too — stat_error() forwards any matching named arguments in the same way you are used to using the ... argument. In this example, to multiply the error by 2, you’d write stat_error(fun = mae_summary, scale_by = 2).

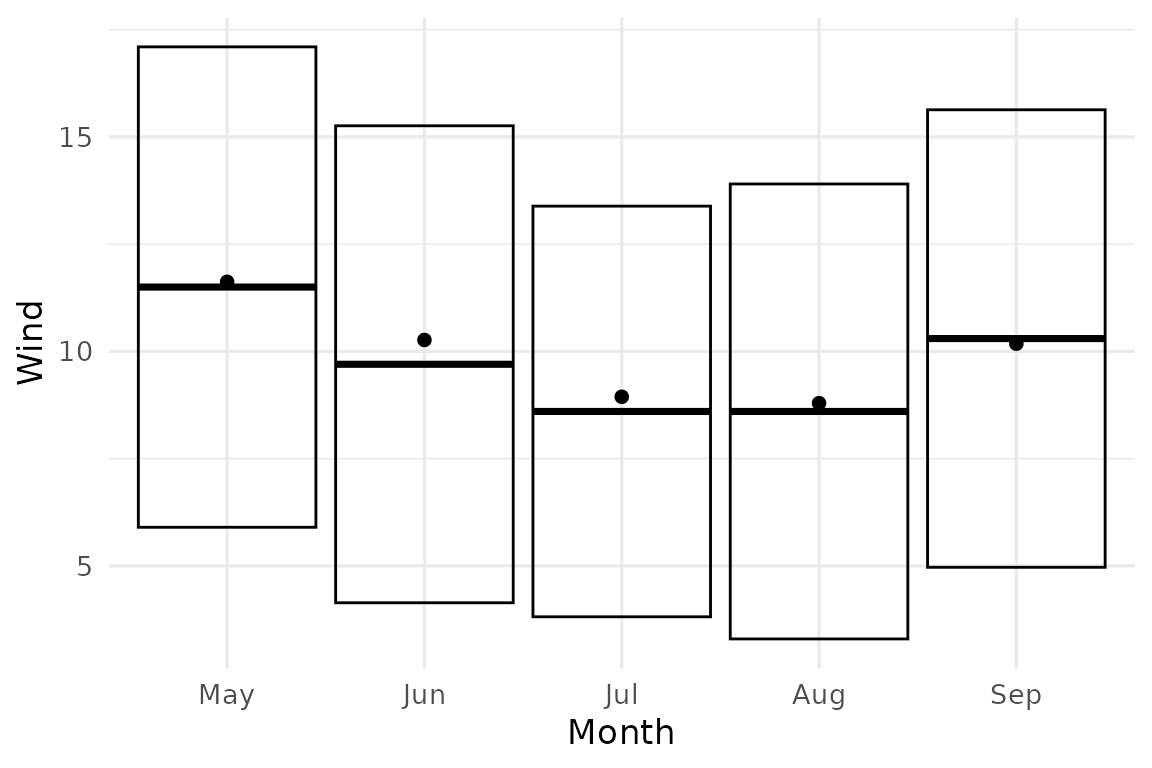

Passing scale_by = 2 to stat_error

ggplot(airq, aes(Month, Wind)) +
  stat_error(fun = mae_summary, scale_by = 2, error_geom = "crossbar") +
  stat_summary(geom = "point")

Aside — geom_error(stat = "error", fun = ...) is the layer-level equivalent of stat_error(), which by default uses stat = "identity".
