Error bars with automatic orientation — geom

A thin wrapper around ggplot2::geom_errorbar(), ggplot2::geom_linerange(), ggplot2::geom_crossbar(), and ggplot2::geom_pointrange() that accepts a single error aesthetic and figures out orientation from the data. For asymmetric errors, use error_neg + error_pos instead of error.

Usage

geom_error(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  error_geom = "errorbar",
  orientation = NA,
  sign_aware = FALSE,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_error_linerange(..., error_geom)

geom_error_crossbar(..., error_geom)

geom_error_pointrange(..., error_geom)

Arguments

mapping: Set of aesthetic mappings created by ggplot2::aes().
data: The data to be displayed in this layer.
stat: The statistical transformation to use on the data. Defaults to "identity".
position: Position adjustment.
...: Other arguments passed on to ggplot2::layer().
error_geom: One of "errorbar" (default), "linerange", "crossbar", or "pointrange". Chooses which ggplot2 error geom geom_error() dispatches to under the hood.
orientation: Either NA (the default; inferred from the data), "x" (vertical error), or "y" (horizontal error).
sign_aware: If TRUE, signed values in error are routed per row: positive values extend the bar in the positive direction, negative values extend it in the negative direction, and the opposite side is suppressed. Useful for residual plots where x/y is the fitted value and the bar extends toward the observed value. Incompatible with stat = "error". Default FALSE.
na.rm: If FALSE, missing values are removed with a warning.
show.legend: Logical. Should this layer be included in the legends?
inherit.aes: If FALSE, overrides the default aesthetics.

Package options

Session-level knobs for the 0 -> NA migration. Set via options():

ggerror.silent_zero_warning — TRUE suppresses the soft deprecation fired when error_neg or error_pos is set to 0 (You are encouraged to set it to NA). Default FALSE.
ggerror.zero_threshold — Numeric absolute tolerance for zero-value detection. Values with a magnitude below this threshold are treated as exactly zero, triggering the warning. Defaults to 1e-8.

Aesthetics

geom_error() requires x, y, and one of:

error — symmetric half-width applied along the non-categorical axis.
error_neg and error_pos — asymmetric; the bar extends error_neg in the negative direction and error_pos in the positive direction along the non-categorical axis. For a one-sided bar, set the unused side to NA — the cap, stem, and shared-bound cap on that side are all suppressed.

Mixing error with error_neg / error_pos is an error, as is providing only one of the asymmetric pair.

Fixed per-side styling can be supplied through ... with _neg and _pos suffixes for colour, fill, linewidth, linetype, alpha, and width. These are fixed scalar parameters, not mapped aesthetics.

Examples

library(ggplot2)

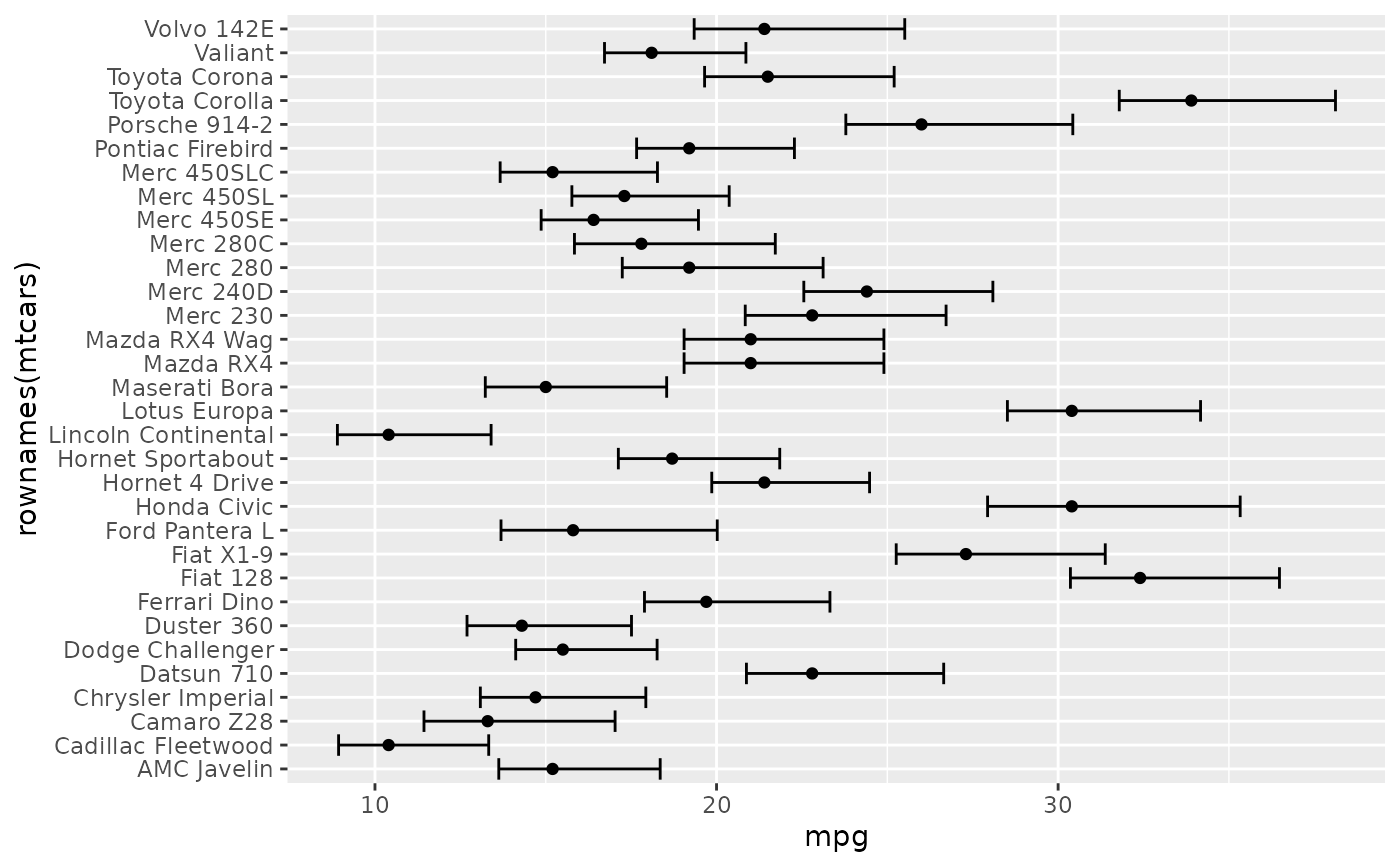

ggplot(mtcars, aes(mpg, rownames(mtcars))) +
  geom_point() +
  geom_error(aes(error = drat))


ggplot(mtcars, aes(factor(cyl), mpg)) +
  geom_point() +
  geom_error(aes(error = drat), error_geom = "pointrange")

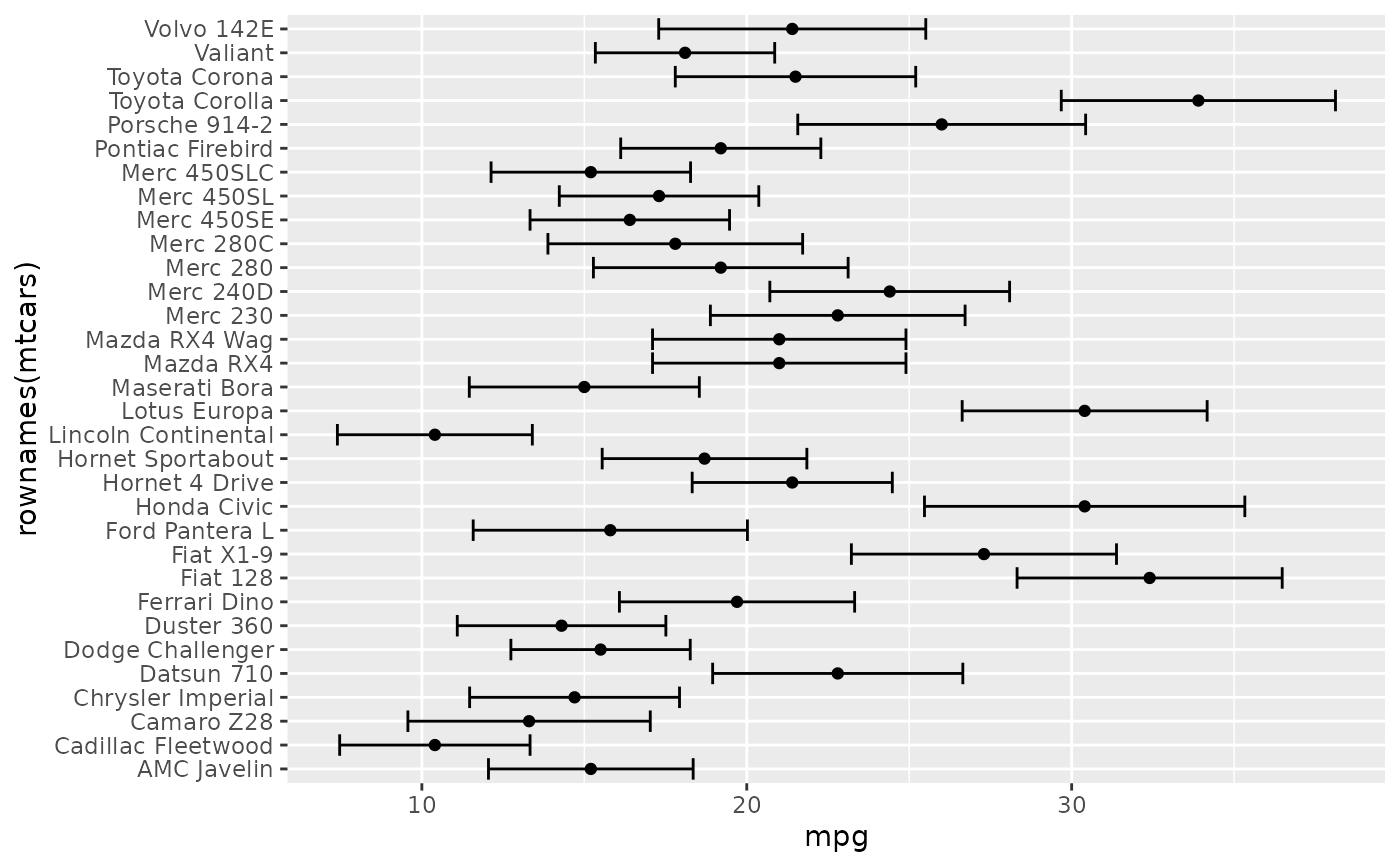

# Asymmetric: bar extends drat/2 below and drat above each point
ggplot(mtcars, aes(mpg, rownames(mtcars))) +
  geom_point() +
  geom_error(aes(error_neg = drat / 2, error_pos = drat))

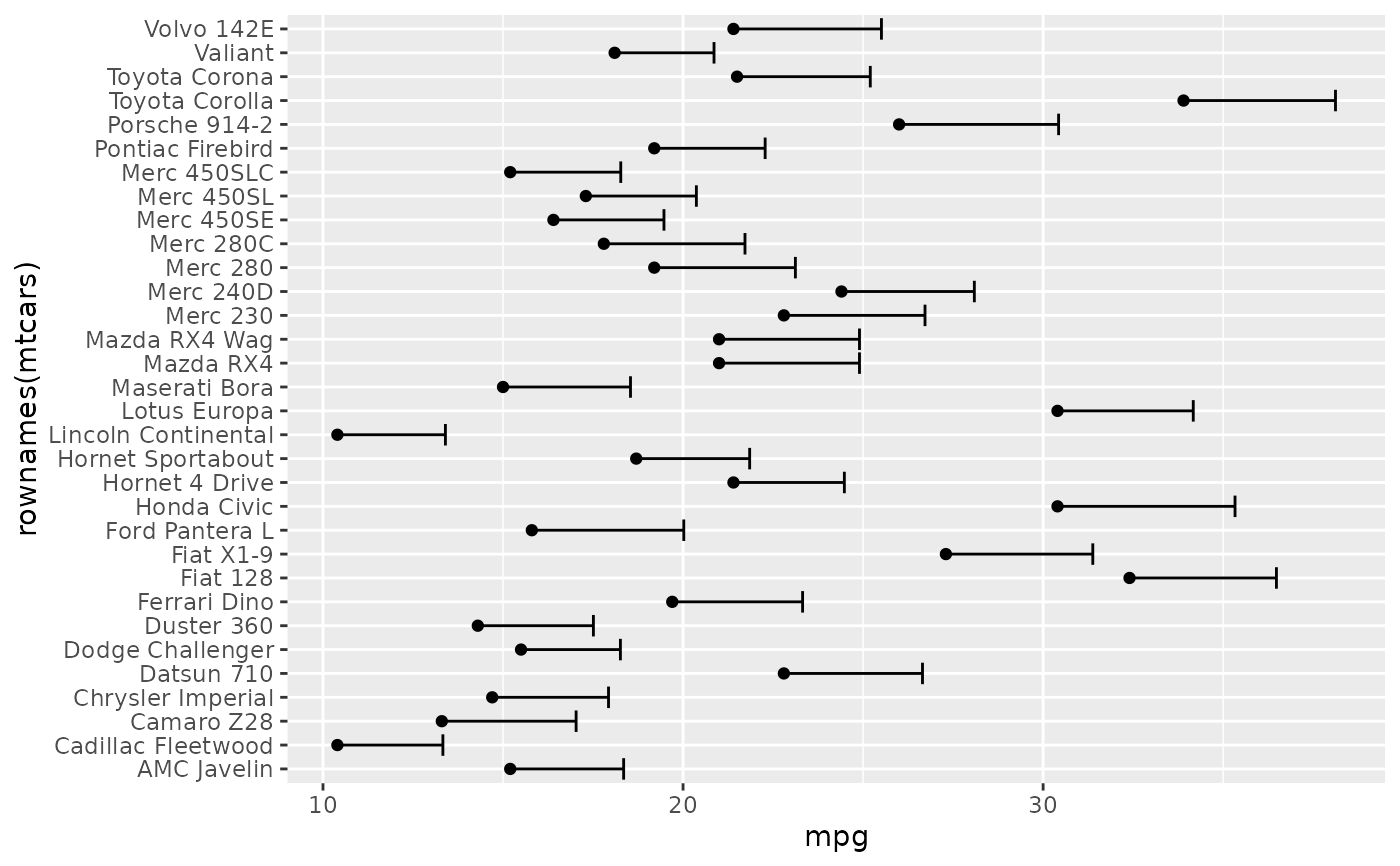

# One-sided: set the unused side to NA (cap + stem auto-suppressed)
ggplot(mtcars, aes(mpg, rownames(mtcars))) +
  geom_point() +
  geom_error(aes(error_neg = NA, error_pos = drat))


# Summarise raw data: mean +/- SE per group (see also stat_error())

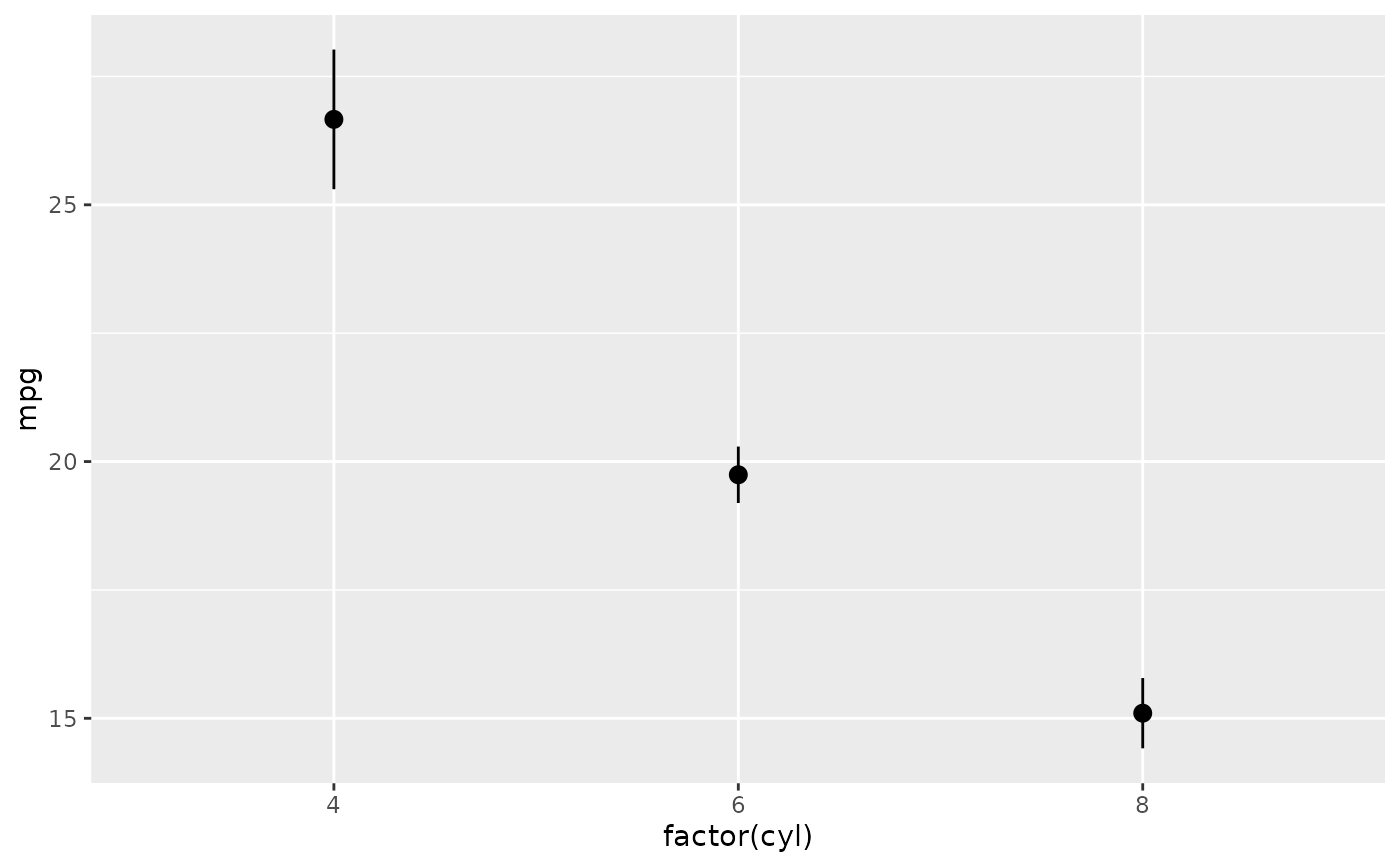

ggplot(mtcars, aes(factor(cyl), mpg)) +
  geom_error(stat = "error", error_geom = "pointrange")

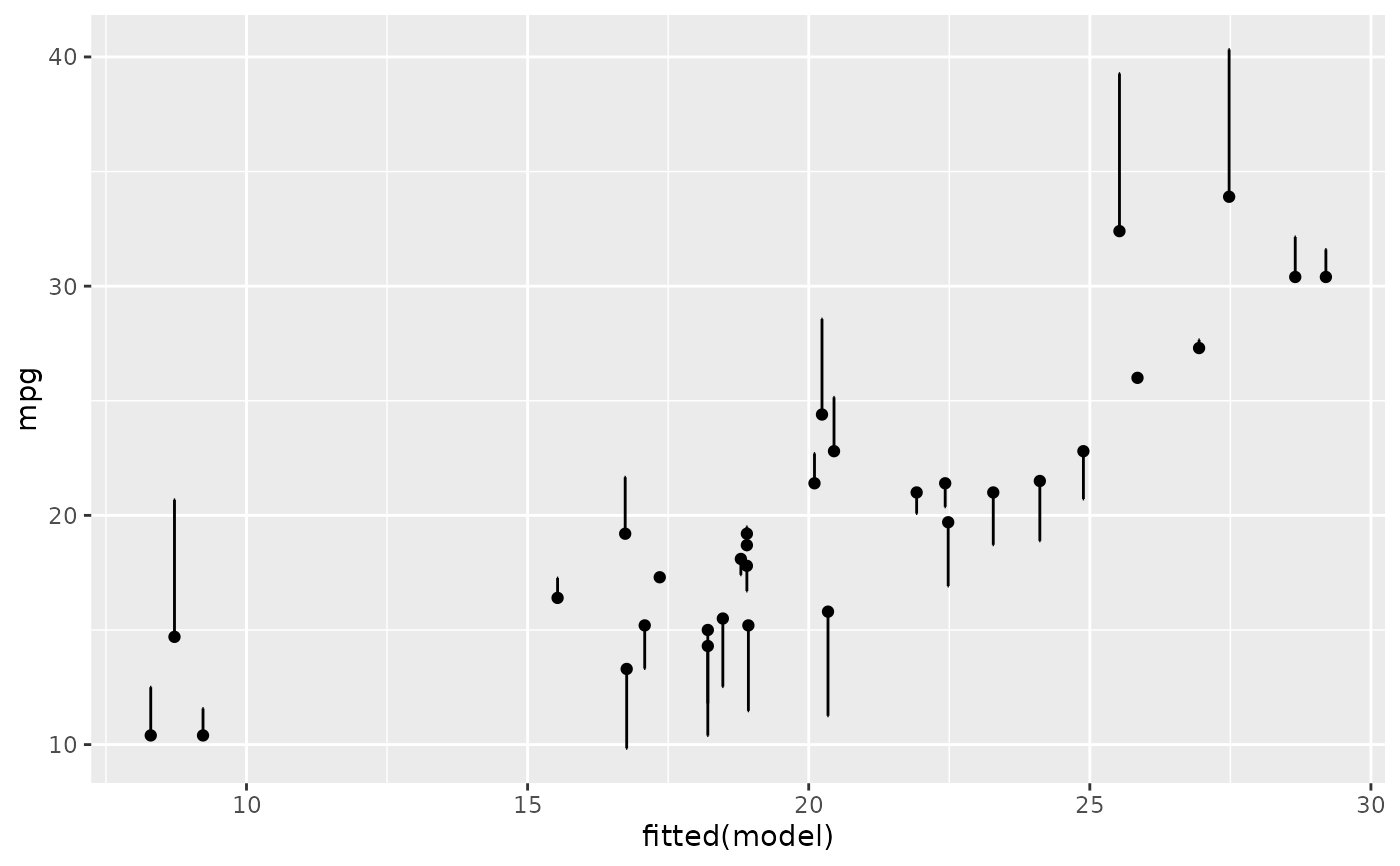

# Signed residual plot: bar extends from fitted toward observed
model <- lm(mpg ~ wt, data = mtcars)
ggplot(mtcars, aes(fitted(model), mpg)) +
  geom_point() +
  geom_error(aes(error = resid(model)),
             sign_aware = TRUE, orientation = "x")

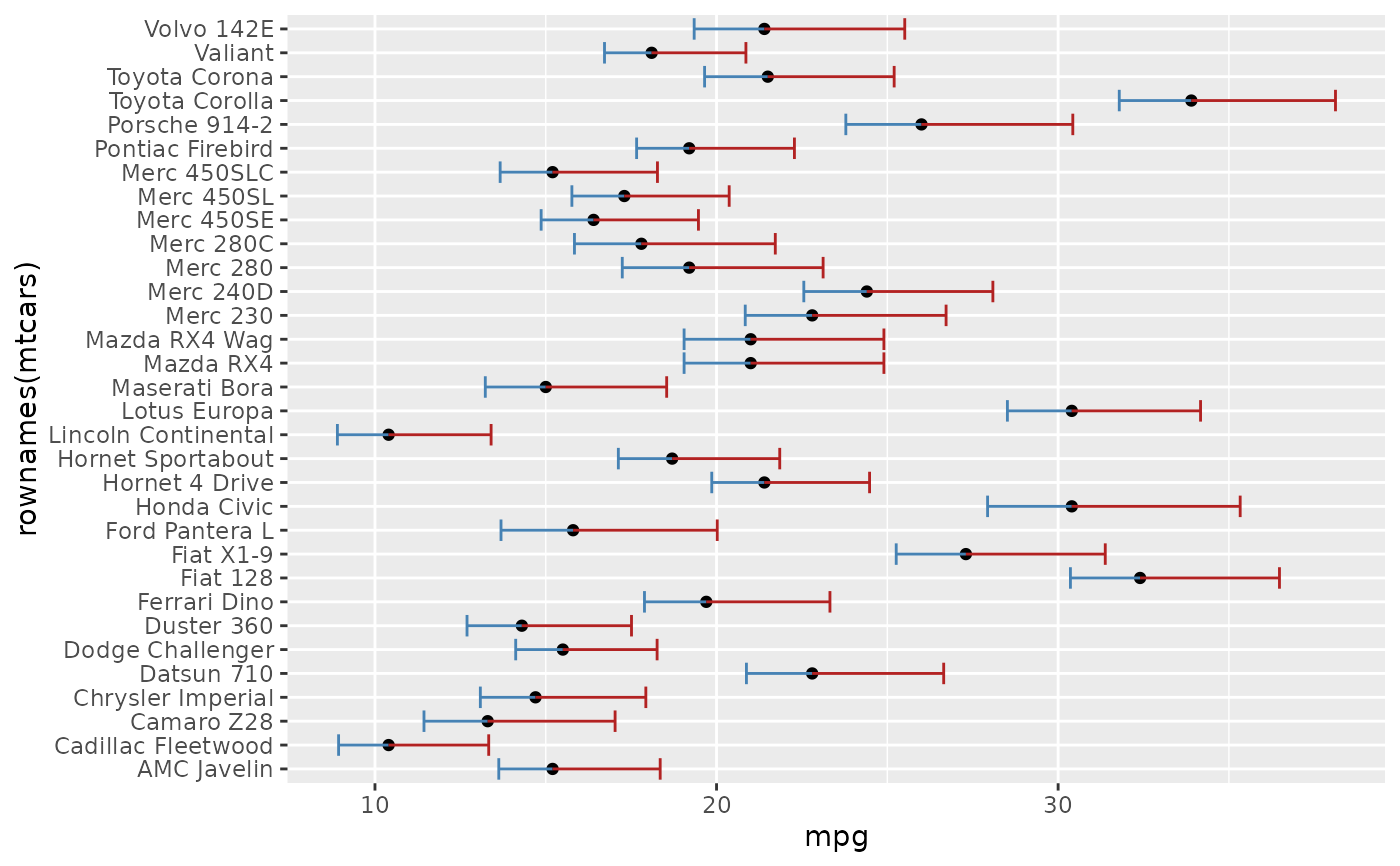

# Style the negative and positive halves separately
ggplot(mtcars, aes(mpg, rownames(mtcars))) +
  geom_point() +
  geom_error(
    aes(error_neg = drat / 2, error_pos = drat),
    colour_neg = "steelblue",
    colour_pos = "firebrick"
  )
